A team of researchers from the University of Cambridge have unravelled one of the mysteries of electromagnetism, which could enable the design of antennas small enough to be integrated into an electronic chip. These ultra-small antennas – the so-called ‘last frontier’ of semiconductor design – would be a massive leap forward for wireless communications.
Electromagnetic radiation
We know about electromagnetic radiation comes from theories first proposed by James Clerk Maxwell in the 19th century, which state that electromagnetic radiation is generated by accelerating electrons.It has no counterpart in quantum mechanics.However, this theory becomes problematic when dealing with radio wave emission from a dielectric solid, a material which normally acts as an insulator, meaning that electrons are not free to move around.
Antennas or aerials
The purpose of any antenna, whether in a communications tower or a mobile phone, is to launch energy into free space in the form of electromagnetic or radio waves, and to collect energy from free space to feed into the device. One of the biggest problems in modern electronics, however, is that antennas are still quite big and incompatible with electronic circuits – which are ultra-small and getting smaller all the time.An aerial’s size is determined by the wavelength associated with the transmission frequency of the application, and in most cases it’s a matter of finding a compromise between aerial size and the characteristics required for that application.

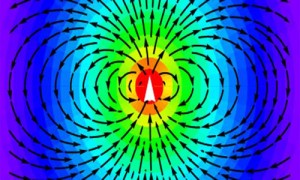

Symmetry breaking
The researchers have proposed that electromagnetic waves are generated not only from the acceleration of electrons, but also from a phenomenon known as symmetry breaking. These new observations of radiation resulting from broken symmetry of the electric field may provide some link between the two fields.
.
Team used thin films of piezoelectric materials, a type of insulator which is deformed or vibrated when voltage is applied. They found that at a certain frequency, these materials become not only efficient resonators, but efficient radiators as well, meaning that they can be used as aerials.The researchers determined that the reason for this phenomenon is due to symmetry breaking of the electric field associated with the electron acceleration. In physics, symmetry is an indication of a constant feature of a particular aspect in a given system. When electronic charges are not in motion, there is symmetry of the electric field.Symmetry breaking can also apply in cases such as a pair of parallel wires in which electrons can be accelerated by applying an oscillating electric field.
The researchers found that by subjecting the piezoelectric thin films to an asymmetric excitation, the symmetry of the system is similarly broken, resulting in a corresponding symmetry breaking of the electric field, and the generation of electromagnetic radiation.Piezoelectric materials can be made in thin film forms using materials such as lithium niobate, gallium nitride and gallium arsenide. Gallium arsenide-based amplifiers and filters are already available on the market and this new discovery opens up new ways of integrating antennas on a chip along with other components.
The future applications for this discovery are important, not just for the mobile technology we use every day, but will also aid in the development and implementation of the Internet of Things: ubiquitous computing where almost everything in our homes and offices, from toasters to thermostats, is connected to the internet.
New results published in the journal Physical Review Letters.
